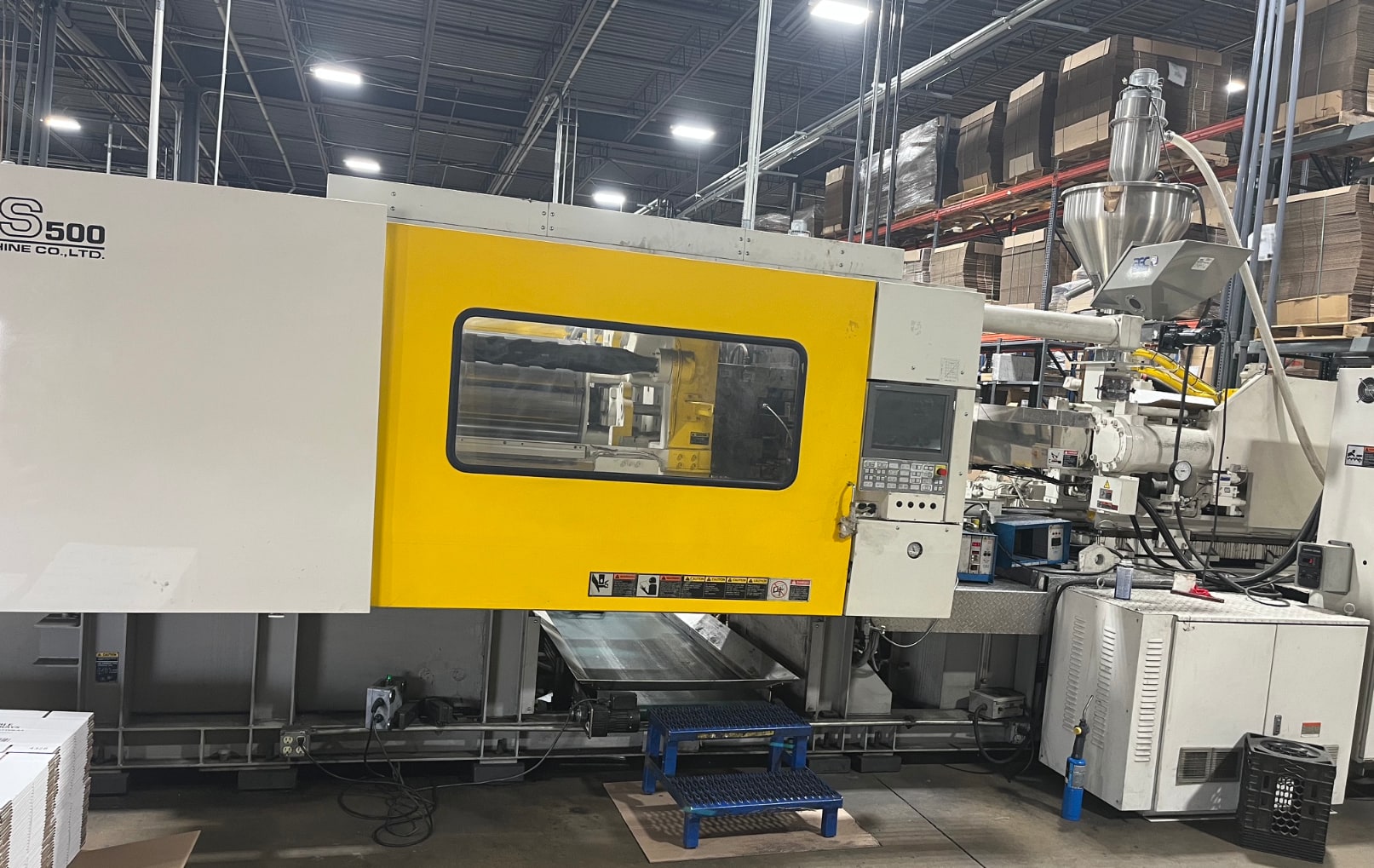

500 ton Toshiba - Installed new in 2014 - Model ISGS500V50-27B - 63 oz. shot
ref # A10754IMO
| Clamp Tonnage | :::: | 500 tons US |
| Tie Bar Distance | :::: | 34.2" x 34.2" |
| Platen Size | :::: | 48.4" x 48.4" |
| Clamp Stroke | :::: | 41.3" |
| Mold Thickness | :::: | 13.8"min |
| Max Daylight | :::: | 55.1" |
| Ejector Stroke | :::: | 6.3" |
| Shot Size | :::: | 63 oz. |
| Pump Motor | :::: | 75 HP |
| Equipped With: |
|
Injectvisor V50 Controller Dual Hydraulic Corepull Dual Airblow Heaterband Failure Alarm Low Oil Level Alarm Mold Valve Gate 1 Zone Air Mold Ejector Plate Monitor Color Feeder Signal SPI Robot Interface Pads Hopper Instruction Manual Approx. 30,000 Hours [Watch Video Of This Machine] |
Mention Ref # A10754IMO
