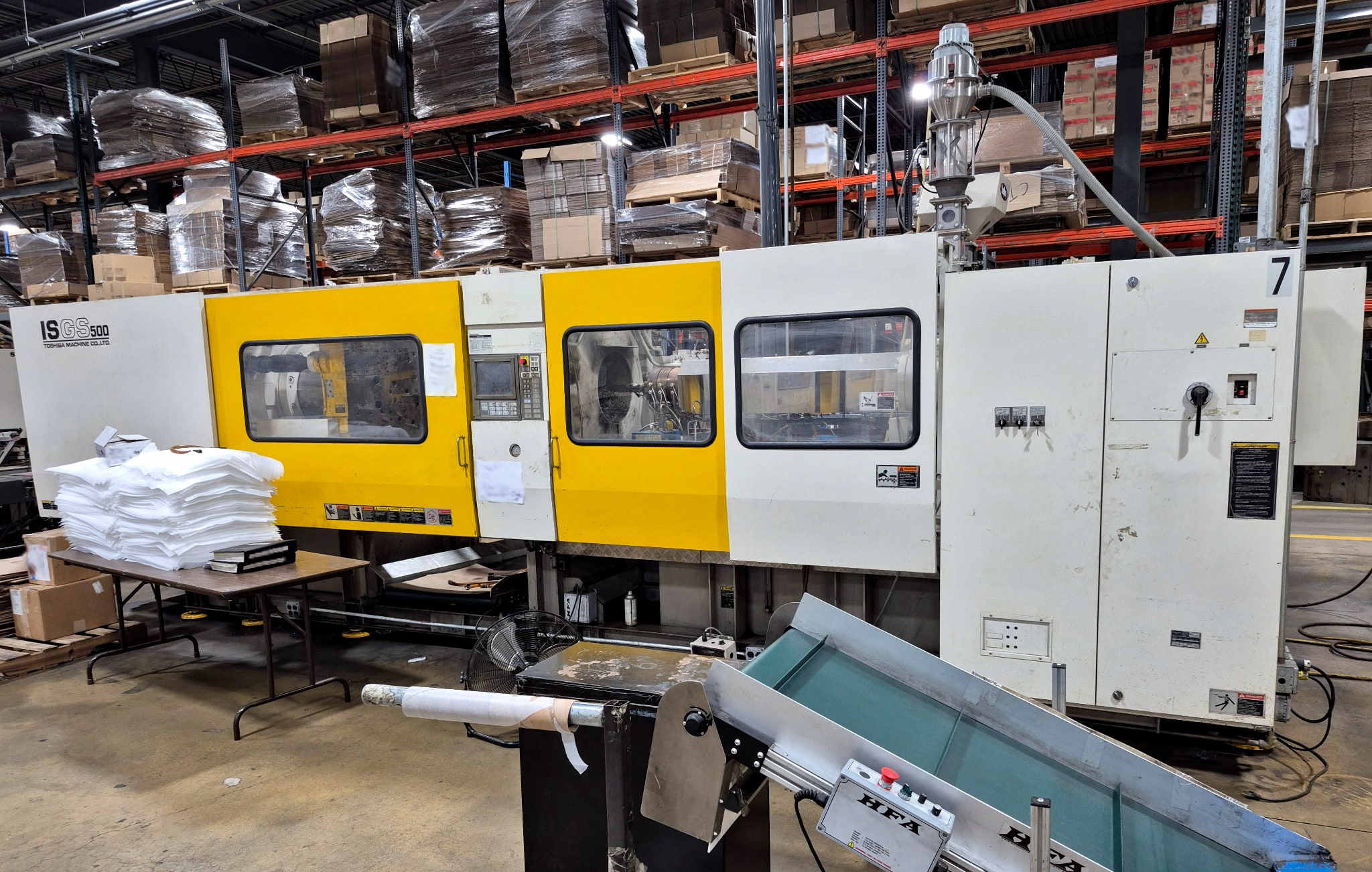

500 ton Toshiba - Installed new in 2006 - Model ISGS500WV21-27B - 63 oz. shot
ref # C555AMO
| Clamp Tonnage | :::: | 500 tons US |
| Tie Bar Distance | :::: | 34.2" x 34.2" |
| Platen Size | :::: | 48.4" x 48.4" |
| Clamp Stroke | :::: | 41" |
| Mold Thickness | :::: | 13.8"min |
| Max Daylight | :::: | 55.1" |
| Ejector Stroke | :::: | 6.3" |
| Shot Size | :::: | 63 oz. |
| Pump Motor | :::: | 75 HP |
| Equipped With: |
|
Injectvisor V21 Controller Hydraulic Corepull Dual Airblow SPI Robot Interface Eject on the Fly |
Mention Ref # C555AMO
