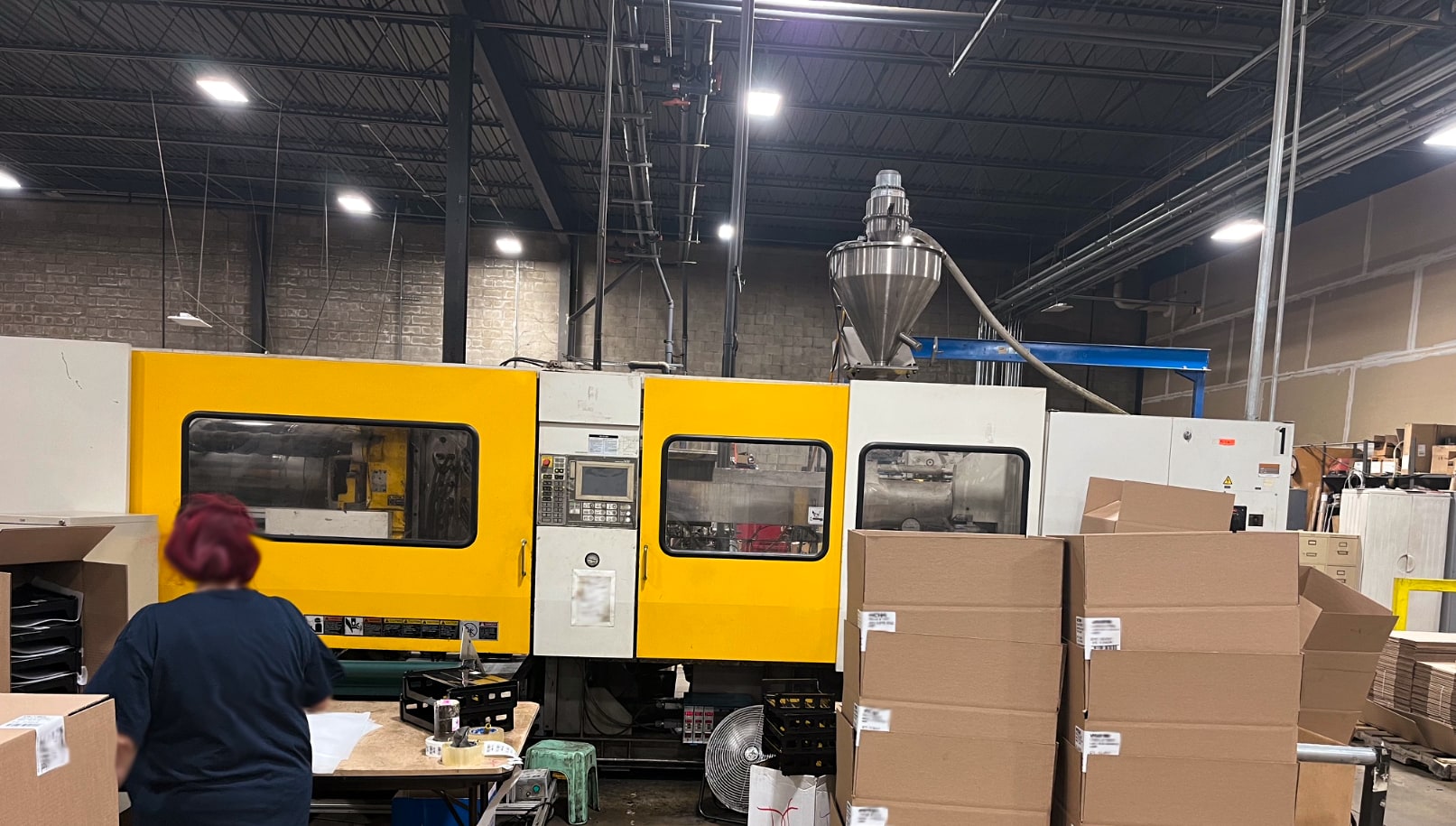

500 ton Toshiba - Installed new in 1999 - Model ISGS500V10-27B - 63 oz. shot
ref # A485BMO
| Clamp Tonnage | :::: | 500 tons US |
| Tie Bar Distance | :::: | 34.2" x 31.8" |
| Platen Size | :::: | 48.4" x 45.6" |
| Clamp Stroke | :::: | 41" |
| Mold Thickness | :::: | 13.8"min |
| Max Daylight | :::: | 55.1" |
| Ejector Stroke | :::: | 6.3" |
| Shot Size | :::: | 63 oz. |
| Pump Motor | :::: | 75 HP |
| Equipped With: |
|
Injectvisor V10 Controller Hydraulic Corepull Dual Airblow Pads SPI Robot Interface |
Mention Ref # A485BMO
