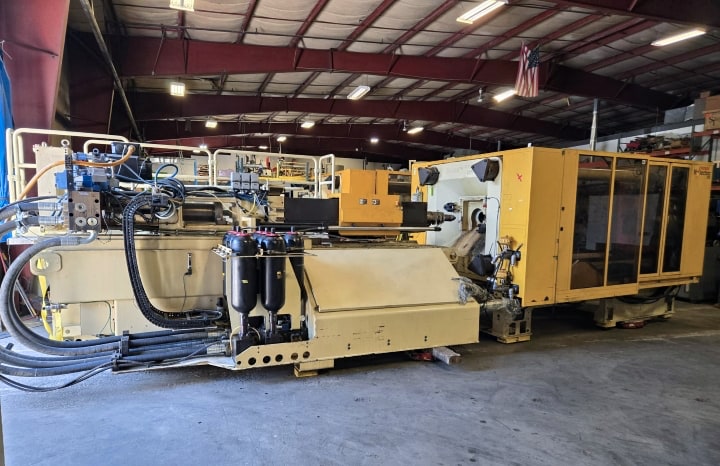

550 ton Husky - Installed new in 2007 - Model H500 RS80/65 - 39.3 oz. shot
ref # E355BPH
| Clamp Tonnage | :::: | 550 tons US |
| Tie Bar Distance | :::: | 40.2" x 40.2" |
| Platen Size | :::: | 56.7" x 58.3" |
| Clamp Stroke | :::: | 33.5" |
| Mold Thickness | :::: | 13.8"min / 37.4"max |
| Max Daylight | :::: | 70.9" |
| Shot Size | :::: | 39.3 oz. |
| Equipped With: |
|
Husky Controller High-Performance Hybrid Drive System High Speed Accum. Assist Injection High Speed Screw Drive Mold Cooling PKG-2" One (1) pneumatic Valve Gate Two Air Valves-SP Three Air Valves-MP One Hydraulic Funtion-SP Barrier High Melt Index Screw Nozzel Shut-off Two Linear Bearing Blocks & Extended Rails Euromap 67 Perimeter Gaurding Interface SPC/SQC Software Package 480 Volt |
Mention Ref # E355BPH
