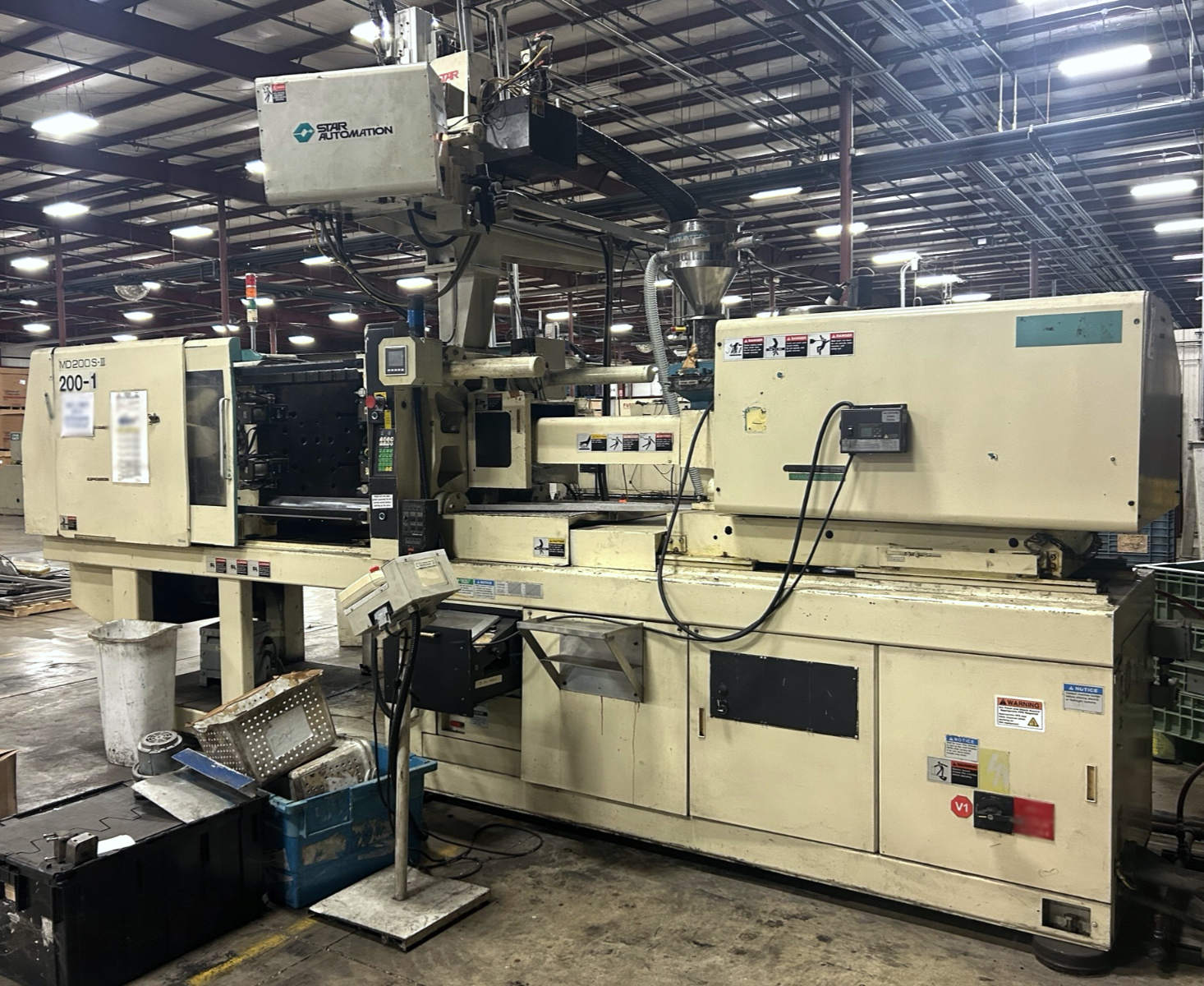

200 ton Niigata All-Electric - Installed new in 1999 - Model MD 200S-3 - 8.6 oz. shot
| Clamp Tonnage | :::: | 200 tons US |
| Tie Bar Distance | :::: | 20.08" x 20.08" |
| Platen Size | :::: | 29.13" x 29.13" |
| Opening Stroke | :::: | 17.7" |
| Mold Thickness | :::: | 7.87"min / 19.68"max |
| Max Daylight | :::: | 37.40" |
| Shot Size | :::: | 8.6 oz. |
| Electrics | :::: | 480 volt/3/60 |
| Equipped With: |
| Niigata Controller Airblow Hydraulic Ejection Corepull Kosmek Clamp System 71,378 Hours Approx. Star Robot Model TW800 FMIII-3 Included! Under Power |
