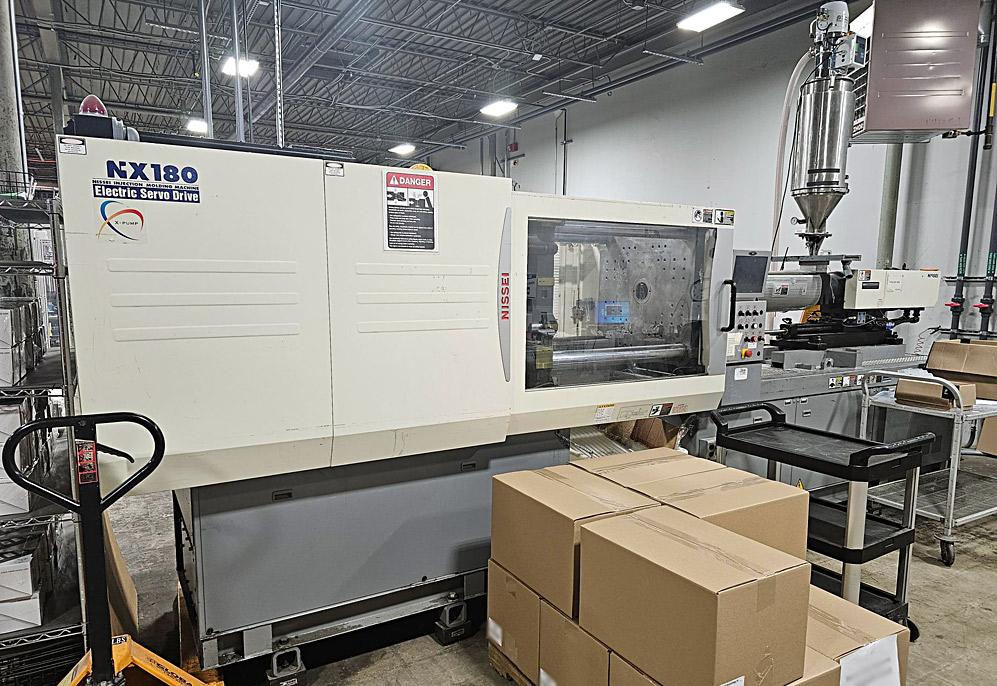

197 ton Nissei - Installed new in 2010 - Model FNX180-36A - 9.6 oz. shot
ref # C824IPH
| Clamp Tonnage | :::: | 197 tons US |
| Tie Bar Distance | :::: | 22" x 22" |
| Platen Size | :::: | 31.5" x 31.5" |
| Ejector Stroke | :::: | 4.3" |
| Clamp Stroke | :::: | 27.6" |
| Max Daylight | :::: | 37.4" |
| Shot Size | :::: | 9.6 oz. (45mm) |
| Mold Height | :::: | 9.8" min. |
| Electrics | :::: | 230 volt/3/60 |
| Equipped With: |
| TACT Controller Corepull Airblow Robot Interface 11.8 oz (50 mm) [optional for extra cost] Only 23,657 Hours! |
Mention Ref # C824IPH
