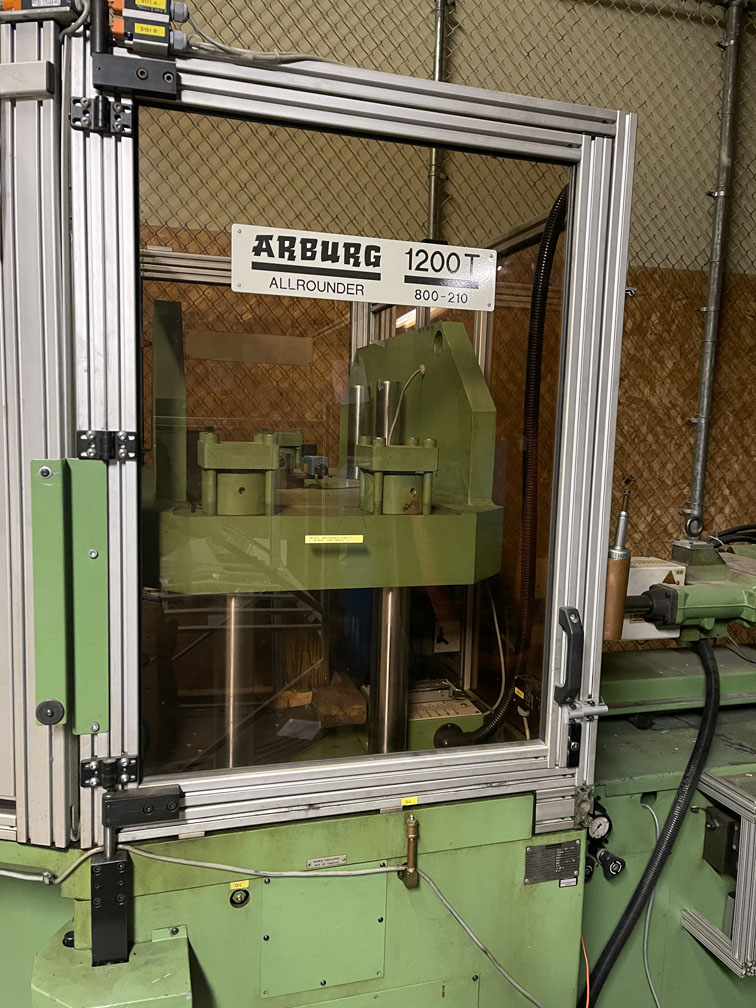

88 ton Arburg Vertical Rotary - Installed new in 1993 - Model 1200T-800-210 - 4.3 oz. shot
ref # B501AMP
| Clamp Tonnage | :::: | 88 tons US |
| Table Diameter | :::: | 47.24" |
| Stations | :::: | 2 or 3 |
| Ejector Stroke | :::: | 5.90" |
| Clamp Stroke | :::: | 11.81" |
| Max Daylight | :::: | 21.65" |
| Shot Size | :::: | 4.3 oz. (35mm) |
| Mold Height | :::: | 9.84" min |
| Equipped With: |
| Multronica Controller Adapters to convert injection from vertical to horizontal Spare 25mm screw/barrel Robot interface 6 additional heat zones |
Mention Ref # B501AMP
