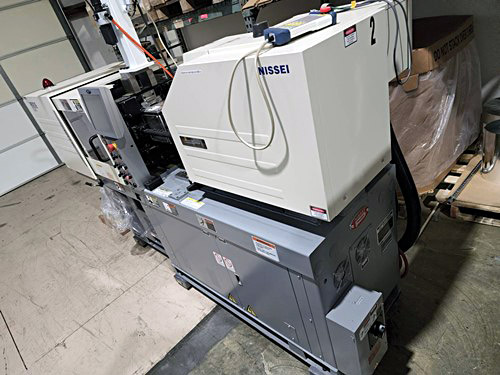

15 ton Nissei All-Electric - Installed new in 2008 - Model NEX15-1 - 0.3 oz. shot
ref # A755BCM
| Clamp Tonnage | :::: | 15 tons US |
| Tie Bar Distance | :::: | 10.2" x 10.2" |
| Mold Height | :::: | 5.1"min / 10.2"max |
| Ejector Stroke | :::: | 2.0" |
| Clamp Stroke | :::: | 6.3" |
| Daylight | :::: | 16.5" |
| Shot Size | :::: | 0.3 oz. |
| Injection Pressure | :::: | 36970 PSI max |
| Approx Weight | :::: | 3,748 lbs. |
| Equipped With: |
| TACT Controller Only 7,048 Hours! Wide Safety Door 5-zone Control of Nozzle and Barrel High-Speed Ejector (Shaft Rotation) High-Durability Toggle Pin & Ball Screw Material Deterioration Prevention Function Improved Maintainability |
Mention Ref # A755BCM
