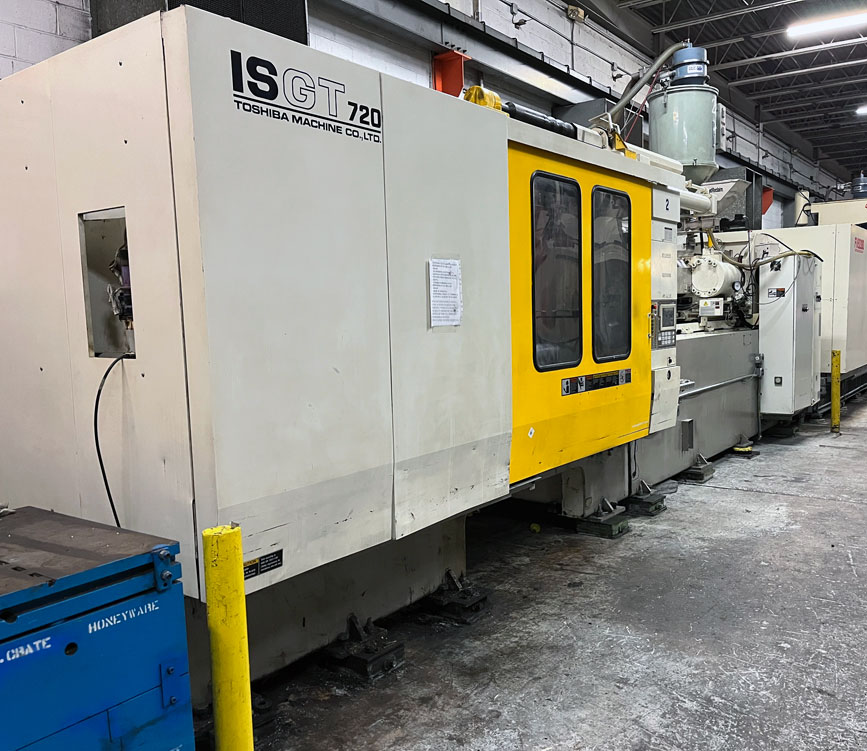

720 ton Toshiba - Installed new in 1999 - Model ISGT720V10-81B - 186 oz. shot
ref # F301BDI
| Clamp Tonnage | :::: | 720 tons US |
| Tie Bar Distance | :::: | 37.7" x 37.7" |
| Platen Size | :::: | 55.1" x 55.1" |
| Ejector Stroke | :::: | 7.9" |
| Clamp Stroke | :::: | 53" |
| Max Daylight | :::: | 70.9" |
| Mold Thickness | :::: | 17.1"min / 41.3"max |
| Shot Size | :::: | 186 oz. |
| Pump Motor | :::: | 120 HP |
| Equipped With: |
| V10 Controller Corepull Dual Airblow Color Feeder Signal Robot Interface 35,000 Hours Approx. High Base |
Mention Ref # F301BDI
