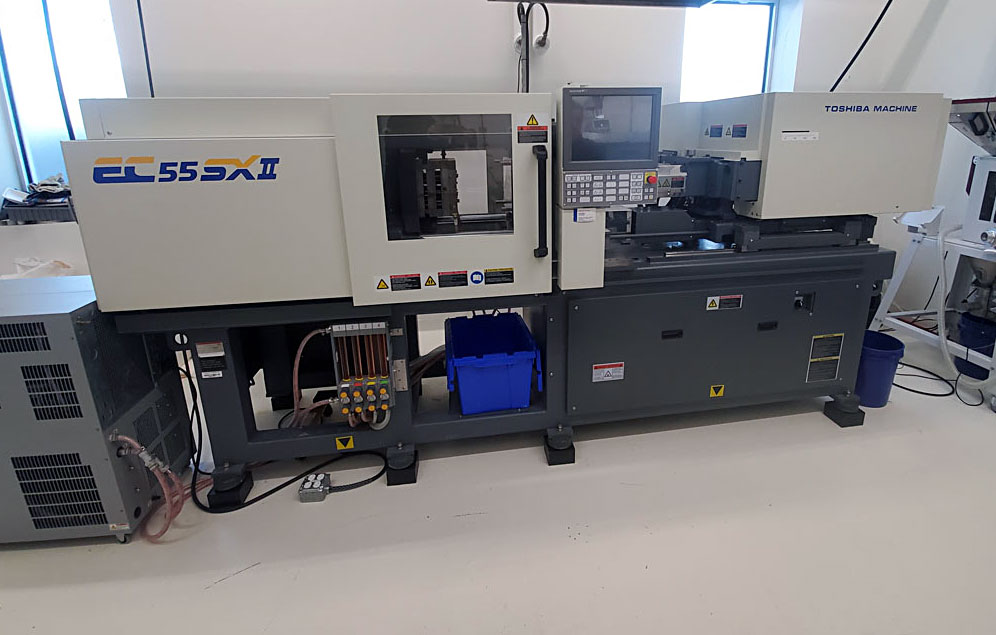

55 ton Toshiba All-Electric - Installed new in 2016 - Model EC55SXIIV50-1.5-1YZ - 1 oz. shot
| Clamp Tonnage | :::: | 55 tons US |
| Tie Bar Distance | :::: | 16.1" x 14.2" |
| Platen Size | :::: | 20.1" x 18.1" |
| Ejector Stroke | :::: | 2.75" |
| Clamp Stroke | :::: | 11.8" |
| Max Daylight | :::: | 26.4" |
| Mold Thickness | :::: | 5.9"min / 14.5"max |
| Shot Size | :::: | 1 oz. |
| Equipped With: |
| Injectvisor V50 controller Dual Airblow Auto Purge Pneumatic Corepull - Single Timer Heater Band Failure Alarm Mold Ejector Plate Monitor Pneumatic Valve Gate - 1 Zone Simultaneous Extrude and Clamp SPI Robot Interface Recept (32 pin/ Euromap 12) USB Memory Port Voltage 208 Volts Only 3500 Hours Of Use In A Lab Environment! |
