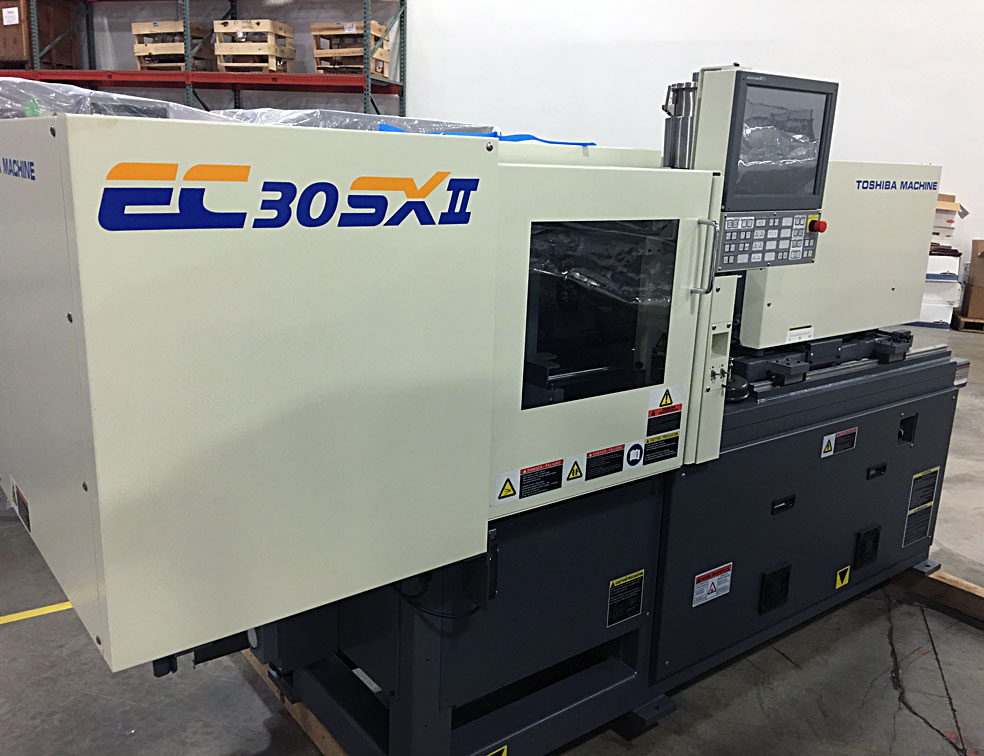

30 ton Toshiba All-Electric - Installed new in 2016 - Model EC30SXIIV50-0.4A - 0.56 oz. shot
Clamp Tonnage | :::: | 30 tons US |
Tie Bar Distance | :::: | 12.6" x 11.4" |
Platen Size | :::: | 17.3" x 16.5" |
Ejector Stroke | :::: | 1.97" |
Clamp Stroke | :::: | 9.06" |
Max Daylight | :::: | 22.1" |
Shot Size | :::: | 0.56 oz. |
Mold Thickness | :::: | 5.9"min / 13.0"max |
Equipped With: |
Injectvisor V50 controller Dual Airblow Single Valve Gate Air 30 volts DBG Screw and Bimetallic barrel Auto Purge Mold Ejector Plate Monitor SPI Robot Interface Mounting Pads No Hopper Only 2,000 Hours Of Use! |
This machine was never used in commercial production!
