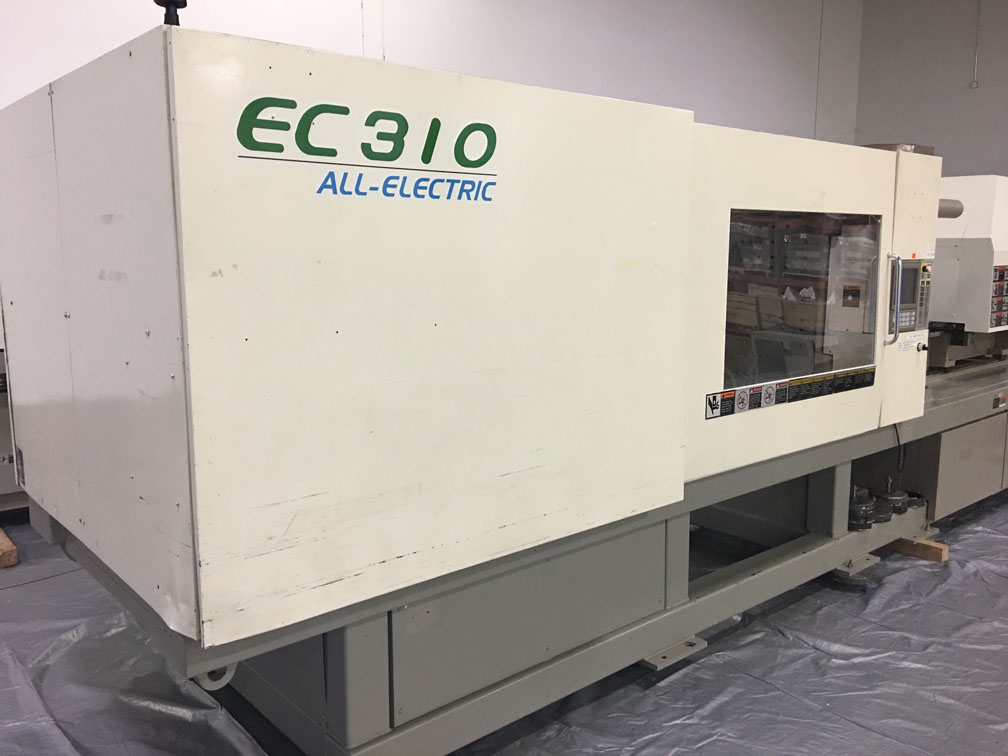

310 ton Toshiba All-Electric - Installed new in 2002 - Model EC310V21-8B - 15.4 oz. shot
| Clamp Tonnage | :::: | 310 tons US |
| Tie Bar Distance | :::: | 28.7" x 28.7" |
| Platen Size | :::: | 40.5" x 40.5" |
| Ejector Stroke | :::: | 5.9" |
| Clamp Stroke | :::: | 25.6" |
| Max Daylight | :::: | 52" |
| Shot Size | :::: | 15.4 oz. |
| Mold Thickness | :::: | 12.6"min / 26.3"max |
| Equipped With: |
| Injectvisor V21 control SDB screw and Xaloy barrel Dual air blow Color feeder signal Hopper and slide out Insulated barrel cover Alarm light Motion/no motion 2 Machines Available 2002: Only 75,000 Hours 2003: Only 70,000 hours |
Both of these machines were used in a medical clean room environment.
