610 ton Toshiba - Installed new in 1995 - Model ISGS610V10-59B -V10 - 126 oz. shot
| Clamp Tonnage | :::: | 610 tons US |
| Tie Bar Distance | :::: | 33.8" x 33.8" |
| Platen Size | :::: | 48.4" x 48.4" |
| Ejector Stroke | :::: | 6.3" |
| Clamp Stroke | :::: | 47.2" |
| Max Daylight | :::: | 63" |
| Shot Size | :::: | 126 oz. |
| Equipped With: |
| V10 Controller Corepull 480 Volt Includes Whitman full servo robot model W433 mfg 2000, with cage specs: traverse stroke 3000 mm, vertical stroke 1800 mm, strip stroke 800 mm with teach pendent Pads Include pvc screw and tip which was purchased new in mid 2016 Spare general purpose screw also included |

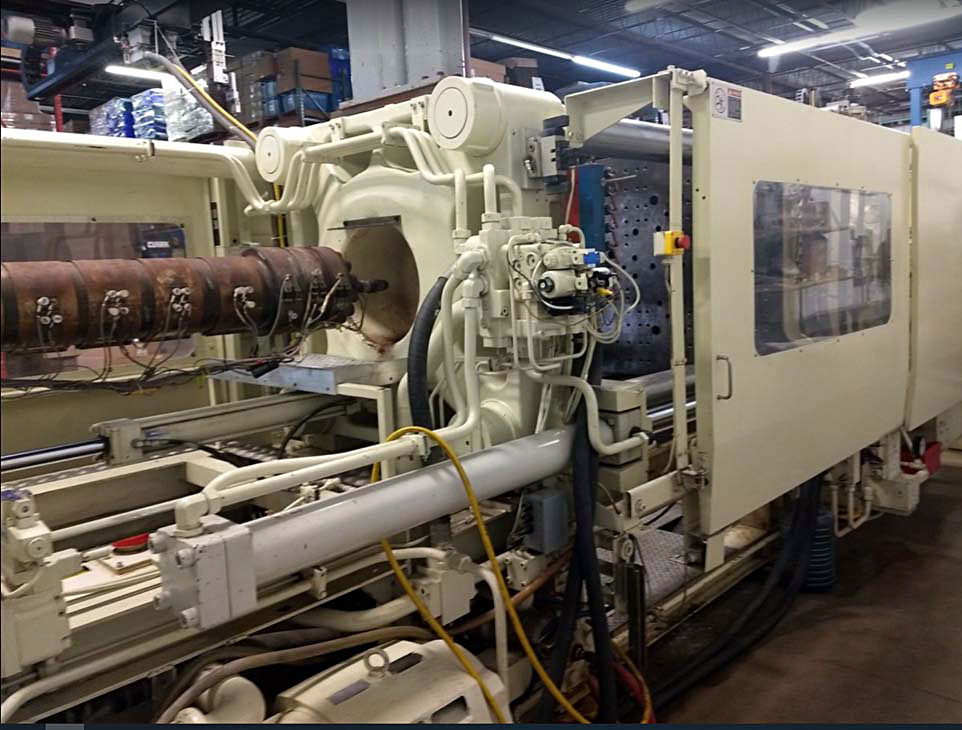

You can see this Toshiba molding machine under power. We have a few short video clips that are included with the quote.
