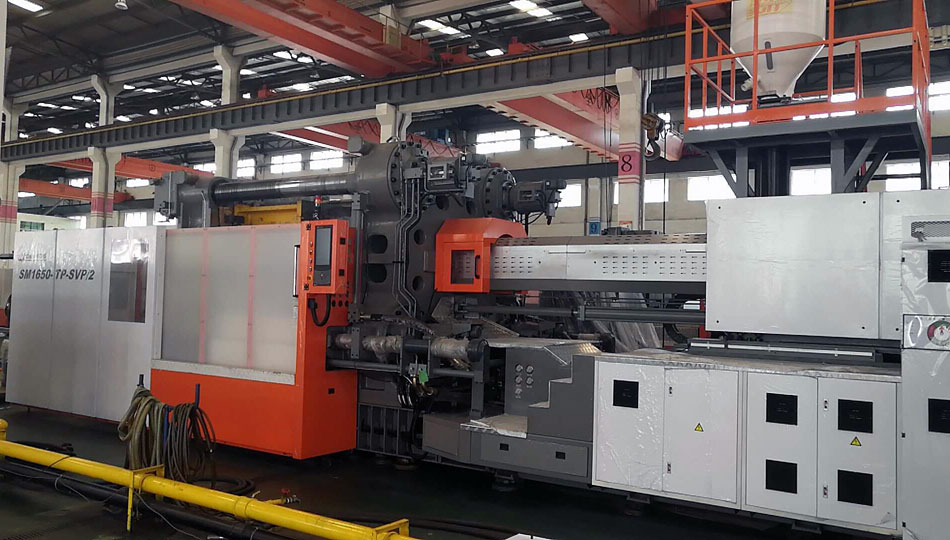

1815 ton Chen Hsong - Brand New - Model SM-1650 TP - 465 oz. shot
ref # SM1650CH
| Clamp Tonnage | :::: | 1815 tons US |
| Tie Bar Distance | :::: | 61.81" x 57.87" |
| Platen Size | :::: | 85.03" x 83.46" |
| Mold Height | :::: | 23.62"min / 55.11" max |
| Max Daylight | :::: | 122.04" |
| Shot Size | :::: | 465 oz. |
| Clamp Stroke | :::: | 66.92"-98.42" |
| Voltage | :::: | 460/3/60 |
| Dimensions | :::: | 484"Lx 149"W x130"H |
| Approx Weight | :::: | 165,500 lbs. |
| Equipped With: |
| Beckhoff German Engineered Controller w/15" Touchscreen Two Platen Machine with Advanced Servo Driven Hydraulics 3 Corepull 3 Airblasts 8 Valve Gates Energy Saving Inovance Servo Pumps High Resolution Potentiometers PID Barrel and Nozzle Temperature Control High Torque Screw Drive Adjustable Slider Supports for Moving Platen High Tensile Chrome Plated Tie Bars Electrical, Mechanical, and Hydraulic Safeties Multiple Ejector System Airblow Electric Screw Drive Water Flow Meters Standard Spare Parts Kit Includes: Prepaid Freight, Start-up Supervision and Training (Customer only provides rigging off the truck and assembly) Includes: 3 Year Warranty on Major Castings Includes: 2 Year Parts and Labor Warranty on ALL non-wear components Additional Options - Please Ask! |
This SM-TP series machine offers several significant advantages at a lower cost such as incredible speeds (up to 700mm/s speed in clamp open/close; Reduced energy consumption by up to 80% with high precision and excellent low noise operation; Fast setup and much more. Be sure to ask us for any additional information you may need when requesting a quote.
Please note: We can only quote new Chen Hsong machines to the United States and Canada.
Mention Ref # SM1650CH
