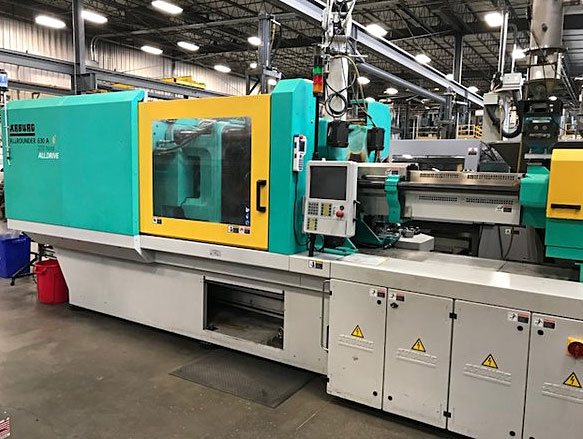

275 ton Arburg All-Drive-Electric - Installed new in 2014 - Model 630A-2500-800 - 15.3 oz. shot - Selogica DTS Controller - Only 22,000 hours approx.
| Clamp Tonnage | :::: | 275 tons US |
| Tie Bar Distance | :::: | 24.8" x 24.8" |
| Platen Size | :::: | 35.43" x 35.43" |
| Mold Thickness | :::: | 11.81"min/29.53"max |
| Clamp Stroke | :::: | 21.65" |
| Daylight | :::: | 33.46"min/51.18"max |
| Shot Size | :::: | 15.3 oz. (55mm) |
| Electrics (Motor) | :::: | 460V-3-60 |
| Electrics (Heaters) | :::: | 230V-3-60 |
| Equipped With: |
| Selogica Direct Touch Screen closed loop control (with full software packages 1,2,3,5,6,7). Wear resistant screw and barrel Small accumulator hydraulics for ejection, nozzle force and corepull. Servo-electric mold height adjustment with automatic clamp force regulation. Injection simultaneous with mold closing. SPI robot interface Compact flash interface for data saving Interface for serial printer Acoustic alarm Flashing light alarm Airblow Low usage….approx 22,000 run hrs Built-in 24 zone hot runner control with addition to cabinetry right side Under Power [Watch Video Of This Machine] |
