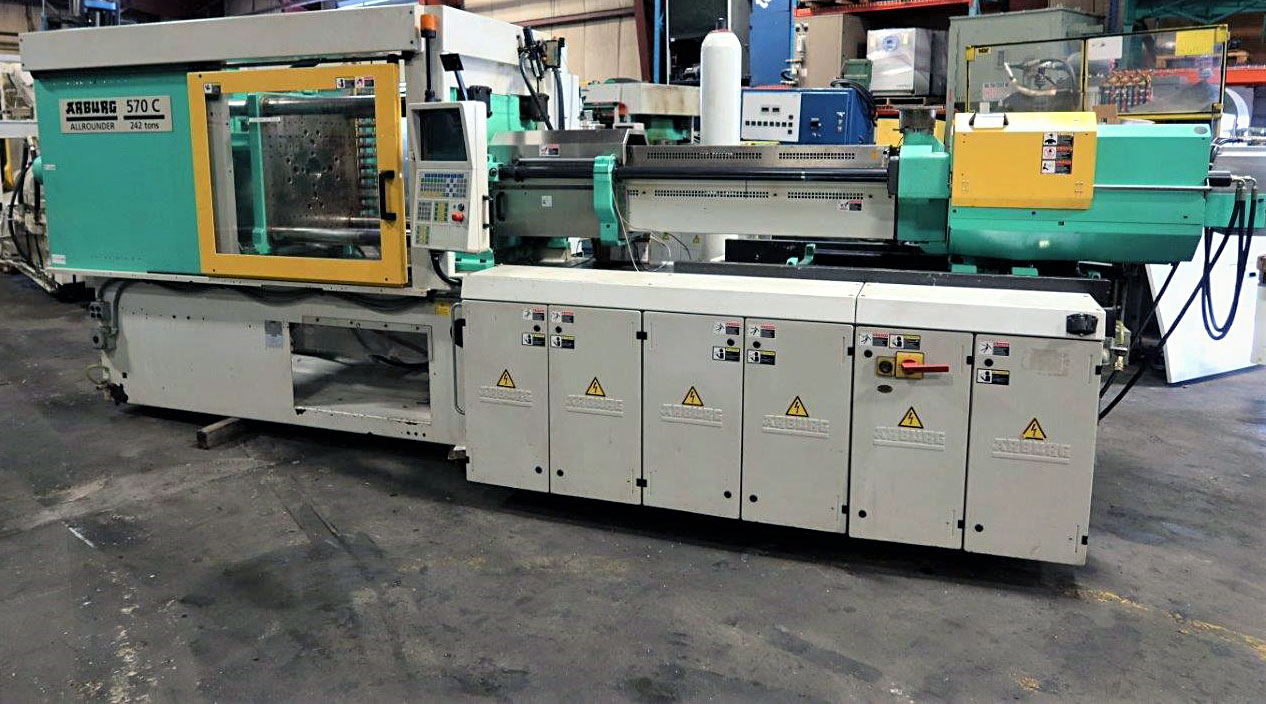

242 ton Arburg - Installed new in 2007 - Model 570C 2200-1300 - 21.4 oz. shot
| Clamp Tonnage | :::: | 242 tons US |
| Tie Bar Distance | :::: | 22.44" x 22.44" |
| Platen Size | :::: | 31.29" x 31.29" |
| Ejector Stroke | :::: | 8.85" |
| Clamp Stroke | :::: | 25.59" |
| Max Daylight | :::: | 37.40" |
| Shot Size | :::: | 21.4 oz. |
| Min Mold Height | :::: | 11.81" |
| Electrics | :::: | 460 volt/3/60 |
| Equipped With: |
| Selogica Controller Accumulator Included - High Speed Injection Conveyor Included Corepull Airblow Servo Drive |
