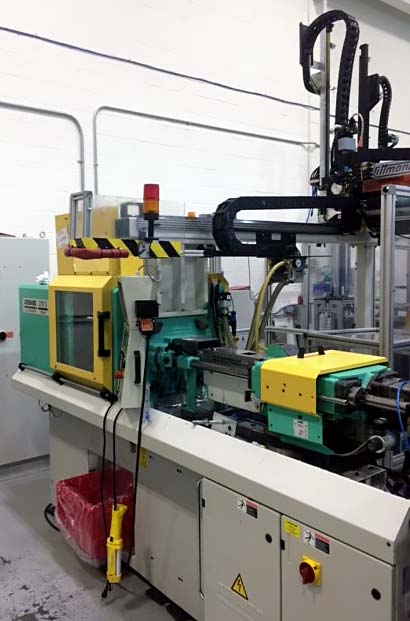

28 ton Arburg LSR - Installed new in 1999 - Model 270S-250-60-LSR - 22 gm - Selogica Controller - LSR Pumping Unit Included!
| Clamp Tonnage | :::: | 28 tons US |
| Tie Bar Distance | :::: | 10.6" x 10.6" |
| Platen Size | :::: | 15.7" x 15.7" |
| Mold Thickness | :::: | 7.9" |
| Clamp Stroke | :::: | 10.8" |
| Max Daylight | :::: | 18.7" |
| Shot Size | :::: | 22 gm (LSR) |
| Equipped With: |
| Selogica closed loop controller with expanded software packages 1,2,3,5,6,7. Technology stage 2 with 2 servo pumps for parallel functions. 18mm LSR screw and barrel Injection regulation Interface for LSR devices Robot interface Dual airblow Printer interface Programmable I/Os , 2+2 Holding pressure switchover by hydraulic pressure No hopper Low useage……approx 42,000 run hrs. Includes LSR Pumping Unit by 2 KM, Model Silcostar 922 w/ 5 gal and 55 gal follower plates and color mixing. Includes Wittmann servo robot Model W420 with strokes of X=500, Y=1000, Z=1500mm. Under power |
