2008 77 ton Arburg LSR Two Shot Used Injection Molding Machine

Request A Quote →

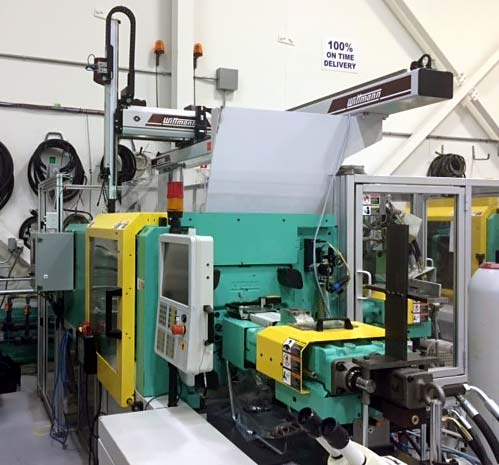

Used 77 ton Arburg 2 shot plastic molder from 2008

77 ton Arburg Two Shot LSR - Installed new in 2008 - Model 370S-700-30/30 - LSR primary shot 11.6 grams, thermoplastic secondary shot 9.5 grams - L-CONFIG - Under Power
ref # H640DBD

Clamp Tonnage :::: 77 tons US
Tie Bar Distance :::: 14.57" x 14.57"
Platen Size :::: 20.08" x 20.08"
Mold Thickness :::: 11.81"
Clamp Stroke :::: 15.75"
Max Daylight :::: 27.56"
Shot Size :::: 11.6 grams LSR
2nd Shot Size :::: 9.5 grams GPS

Equipped With:
Selogica Direct controller with extended movements software package
Liquid Silicone Rubber anti wear barrel- 15mm
Thermoplastic barrel -15mm high wear and corrosive resistant
Technology stage accumulator
Serial interface for printer
Safety guard with increased height
Acoustic alarm
1st corepull –simultaneous movement
Interface for coloring device
EL control for 2nd corepull
Interface for LSR pump
Robot interface
CSA approved circuit breakers
Two airblows
12 electric heating regulation circuits
Holding pressure switchover via hydraulic pressure
4 programmable I/O
Increased Injection pressure by 10%
Nozzle contact force regulated both inj units
Interface for vacuum control with vacuum unit
Position regulated screw both inj units
Pump motor is 600V, heaters are 208/230V
No hopper
Injection during mold closing
Low useage – approximately 33,000 run hrs.
Includes Wittmann servo robot Model W72 with, 500X, 1200Y and 3000Z strokes (mm)

This machine can be seen under power and a short video is available to view with quote requests. Please get in touch with us today for additional information.
Mention Ref # H640DBD
