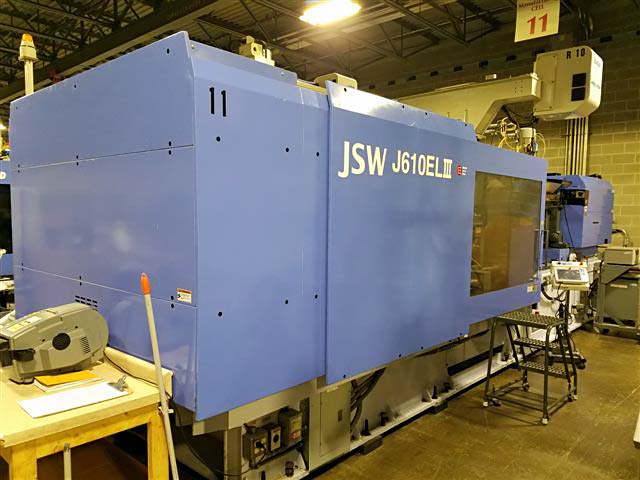

610 ton JSW All-Electric - Installed new in 2008 - Model J610 ELIII - 43.6 oz. shot - Syscom Controller -Under Power
Clamp Tonnage | :::: | 610 tons US |
Tie Bar Distance | :::: | 37.8" x 35.4" |
Platen Size | :::: | 54.37" x 52" |
Clamp Stroke | :::: | 35.46" |
Mold Thickness | :::: | 15.7"min/31.5"max |
Max Daylight | :::: | 66.9" |
Shot Size | :::: | 43.6 oz. |
Equipped With: |
Syscom controller Bimetallic screw with corrosive resistant barrel Feed throat temp control Injection compression/coining Auto lube SPI Robot Interface Printer Interface Manual CD Machine pads |
